Geared Turbo Blower
For Air or Gas in Pressure or Vacuum Applications
- • Energy Efficient – Best overall efficiency through entire flow range.
• Wide Turndown Range – Capable of turndown between 100% and 40% of design flow.
• Control – Variable inlet and discharge guide vanes, speed control.
• Tilt Pad Force Lubricated Bearings for proven 30+ year life.
• Quality – API 617/672, ASME PTC13/ISO 5389.
• Oil-Free Process Air or Gas / Pressure or Vacuum.
• 100 to 6,000 hp / 75 to 4,500 kw.
• Made in USA
Gearless High Speed Turbo Blower Core Technology
- • High Efficiency
- • Proven Technology
- • High Reliability
- • Simple Control Systems
- • Inlet and Outlet Vane Control
- • Designed for Each Project
- • Gear Set
- • Impeller Trim
Aerodynamic Perfection
Our backward swept impeller design with splitter blades puts the peak efficiency on a stable part of the curve. Having a higher rise to surge allows for safer operation throughout the entire flow range. Radial or Forward Swept impellers are most efficient near surge conditions and are susceptible to tripping the blower off or causing damage.
High speed permanent magnet motors offer superior efficiency at partial load as compared to traditional induction motors. The patented NO-0675821 forced cooling systems of our motors allow a longer life, even in the hottest environments.
Tilt Pad Force Lubricated Bearings
The GB Series utilize force lubricated tilt pad bearings proven to be a 30-year robust platform. Add SO-INFINITY lubricant and enjoy up to 90,000 hours of constant service between lubricant changes.
- • Infinite Bearing Life!
- • Hydrodynamic Bearing
- • Minimal Maintenance
- • Tried & Proven Bearing Design
- • No Contact with Shaft
- • Steel Backed
- • 10 Year Core Component Warranty Available
Complete Packaged Systems
All accessories including motor, control panel, special designed inlet filter all pre engineered as a working system. Optional sound enclosure can be added for noise sensitive environments.
- • Standard or Custom Engineered for any Application
- • Explosion Proof Options
- • Air-Gas-Pressure-Vacuum
- • Sound Enclosures Available
Turbo Blower Skid Assembly

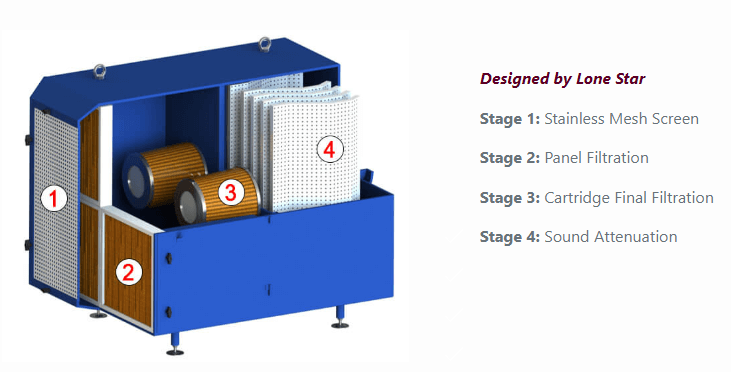

Inlet Filtration Systems
- • Maximizes Efficiency
- • Reduces Maintenance
- • 98% rating at 2 micron
- • Low Velocity – Oversized
- • Custom Built to Your Needs
- • Acoustical Silencing Specific to Each Application
- • Standard Filter Sizes- non-proprietary
